Die casting is a casting process used across the industry to create high-precision metal parts from die casting alloys. This article will explore this process to understand how it works, its different types, and the advantages it offers over competing processes.
What Is Die Casting?
Die casting is a metal casting process that uses metal dies to create metal parts. Molten metal is poured or injected into the metal dies and allowed to solidify. Once solidified, the parts are removed from the mould and put to use after minimal finishing operations.
The die casting process is primarily used for casting non-ferrous metals, such as aluminium, magnesium, zinc and their alloys, but it can also be used for other metals with comparable melting points.
Die casting is essentially the same as injection moulding, as the primary difference lies in the materials used—molten metal vs molten plastic—or, in the case of metal injection moulding, metal powder mixed with binders.
Additionally, die casting requires higher temperatures and pressures due to the properties of metals, and the moulds are typically made from high-strength steel to withstand these conditions, whereas injection moulding can use moulds made from a variety of materials due to the lower temperatures and pressures involved in processing plastics.
Applications of Die Casting
Die casting is widely used in various industries to produce parts such as:
- Automotive components (engine blocks, transmission cases and wheel rims)
- Consumer electronics (housing for laptops, smartphones and cameras)
- Appliances (handles, brackets and heat sinks)
- Aerospace components (aircraft parts and fittings)
- Industrial equipment (pumps, valve bodies and enclosures)

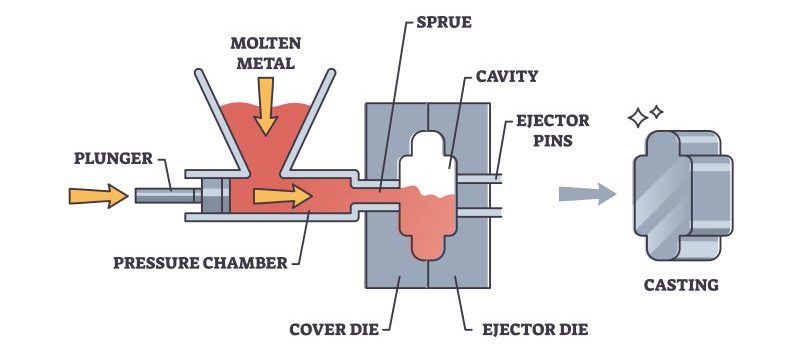

Die Casting Process
The die casting process can have different mechanics depending on the metal, application and the process employed. For instance, the molten metal could be poured via gravity or injected into the die under high pressure.
Let’s explore a typical die casting process, which involves six main stages:
- Mould Creation
- Mould Preparation
- Metal Injection
- Cooling
- Casting Removal
- Finishing Operations
1. Mould Creation
The mould in die casting is a metal die with an internal cavity the same shape as the product. Nowadays, CAD/CAM and CFD (Computational Fluid Dynamics) software are used to design moulds. These programs can accurately simulate the smallest details about a mould such as internal friction, temperature distribution, flow rates, heat dissipation rate and lubrication efficiency.
After successful simulations, the engineers share the drawings and specifications, such as tolerance and tonnage, with specialist toolmakers. These specialised toolmakers create the mould through CNC machining and run trials to ensure that the final product meets the specifications. In addition to the cavity, an industrial die also contains channels for metal flow, a cooling system and ejector pins.
This is one of the critical stages in die casting. A high-quality mould can eliminate many issues downstream, such as surface defects, material wastage, shrinkage, warpage and incomplete filling.
2. Mould Preparation
The mould preparation stage involves setting up the mold in a way that is most favourable to producing high-quality castings.
The mould is made up of two halves: the fixed die half, which is connected to the injection system, and the removable die half, which separates to remove the casting.
Engineers clean and heat the mould before pouring molten metal into it. They also spray the inner surfaces of the mould with lubricant or refractory material. Of course, these processes can be automated as well.
The lubricant serves multiple functions, including reducing internal friction, aiding in maintaining the die’s temperature, preventing premature solidification of the molten metal in the die, and facilitating the removal of the cast from the die once the metal has solidified.
Finally. the mould halves are closed and secured together using high pressure before pouring the metal.
3. Metal Injection
In this stage, molten metal fills the die uniformly. This action can be performed in two ways. One method is gravity die casting, where the force of gravity is utilised to fill all the internal cavities in the mould. This process involves pouring the molten metal from a ladle into a downward sprue that leads to the mould cavity.
The second method, also known as high-pressure die casting, fills the mould by injecting the molten metal into it under high pressure. The pressures can range from 100 bars (1,400 psi) to 1800 bars (26,000 psi). This method offers several advantages over gravity die casting, such as faster and better filling of the mould, the capacity to create intricate structures with thin walls, high dimensional stability, smoother surface finish and the minimisation of finishing operations downstream.
4. Cooling
Once the molten metal has completely filled the mould, the cooling stage begins. It is important to ensure a uniform and controlled cooling rate to obtain the desired microstructure in the final product.
Molten metal must be given enough time to cool to prevent surface or internal defects from forming in the part.
5. Casting Removal
Once the cast is set, the mould halves are unclamped to facilitate the removal of the casting. This may be done manually or automated using ejector pins. The ejector pins are built into the mould to safely and automatically separate the cast when the mould halves are separated.
6. Finishing Operations
Finishing operations are necessary to remove the sprue, runners and other gating system components from the casting. These components are then remelted in the furnace for reuse.
The casting may also need finishing operations, such as surface grinding and machining before it is ready for handover to the customer.
Types of Die Casting
Die casting processes can be carried out under different conditions depending on the specifications of the process and the final part.
Among the many specialist processes in die casting, two are worth elaborating on: the hot chamber die casting and cold chamber die casting processes. Let’s have a look at both of these processes to gain a better understanding.
Hot Chamber Die Casting
The hot chamber in the hot chamber die casting process refers to an internal furnace within the casting machine. The furnace is connected to the die cavity through a feeding system known as the “gooseneck”. As the metal is melted within the casting machine itself, this process offers faster cycle times of about 20 minutes, making it a worthy contender for mass production.
The hot chamber, however, cannot reach very high temperatures. Therefore, the process is most suitable for low melting point metals such as lead alloys, zinc alloys and magnesium alloys. As the metal melts, it is forced into the die through the gooseneck by a plunger.
The plunger withdraws when the metal in the die solidifies. The mould opens and the casting is removed. Then, the mould closes once again, the plunger transfers the hot metal into the die cavity, and repeats the process.
The hot chamber die casting process is popular for its speed, accuracy and consistency. Additionally, it offers a longer die life and improved corrosion resistance.
Cold Chamber Die Casting
The cold chamber die casting process is similar to the hot chamber process, except that the metal is not melted in the casting machine.
The metal is melted in an external high-temperature furnace and transferred to the cold chamber die casting machine via a ladle. In the cold chamber machine, a hydraulic piston forces the metal into the metal die for casting.
This process is suitable for metals with higher melting points such as copper, magnesium, aluminium and their alloys. Magnesium alloys start melting at about 360°C (680°F) and go up to 650°C (1200°F). Therefore, some magnesium alloys can be cast using hot chamber die casting, while others can be cast using cold chamber die casting.
Metals with higher melting points offer greater strength, durability and hardness compared to low melting point metals. Therefore, cold chamber die casting is a better choice for demanding applications.
